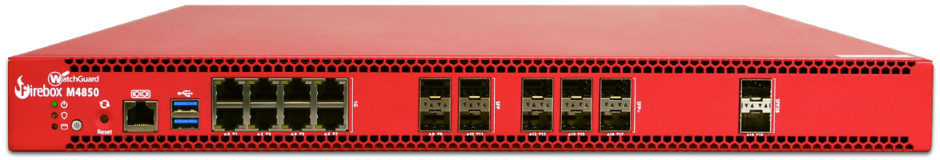

Firebox M4850
Enterprise firewall with 36 Gbps firewall throughput and support for 10,000 VPN tunnels
WatchGuard Products
WatchGuard Firebox M4850 Appliance (Hardware Only - Subscription Required for Operation)
WatchGuard Standard Support (Service Subscription - Hardware Required)
Includes: Support (24x7), VPN & Networking, and Dimension Command
WatchGuard Standard Support for Firebox M4850 - 1 Year
#WGM48500601
Our Price: Request a Quote
Our Price: Request a Quote
WatchGuard Standard Support for Firebox M4850 - 3 Year
#WGM48500603
Our Price: Request a Quote
Our Price: Request a Quote
WatchGuard Standard Support for Firebox M4850 - 5 Year
#WGM48500605
Our Price: Request a Quote
Our Price: Request a Quote
Click here to jump to more pricing!
Please Note: All Prices are Inclusive of GST
Overview:
Secure Performance for Large Sites and Distributed Enterprises
Designed for organizations that have outgrown traditional midrange firewalls, the Firebox M4850 delivers high performance security for demanding network environments. Purpose built as the entry point to WatchGuard’s High Rackmount family, the M4850 combines strong firewall, VPN, UTM, and HTTPS inspection performance with integrated multi speed connectivity and redundant hardware. It enables organizations to step into high rackmount deployments without introducing unnecessary complexity or enterprise level cost.
Uncompromising Speed
Deep, Continuous Security
Next-Gen Scaling
Enterprise-Grade Power
Features:
Strong Security at Every Layer
Uniquely architected to be the industry’s smartest, fastest, and most effective network security products, WatchGuard solutions deliver in-depth defenses against advanced malware, ransomware, botnets, trojans, viruses, drive-by downloads, data loss, phishing, and much more.
| Standard Support | Basic Security | Total Security | ||
|---|---|---|---|---|
 |
Stateful Firewall |
|||
 |
VPN |
|||
 |
SD-WAN |
|||
 |
Access Portal* |
|||
 |
Intrusion Prevention Service (IPS) |
|||
 |
Application Control |
|||
 |
WebBlocker (URL/Content Filtering) |
|||
 |
spamBlocker (Anti-Spam) |
|||
 |
Gateway AntiVirus |
|||
 |
Reputation Enabled Defense |
|||
 |
Network Discovery |
|||
 |
APT Blocker |
|||
 |
DNSWatch |
|||
 |
IntelligentAV** |
|||
 |
ThreatSync (XDR) |
|||
 |
EDR Core |
|||
 |
WatchGuard Cloud Log Data Retention Report Data Retention |
90 Days 1 Day |
365 Days 30 Days |
|
 |
Support |
Standard (24x7) |
Standard (24x7) |
Gold (24x7) |
*Not available on Firebox T115-W, T20/T20-W, T25/T25-W, or T35-R. Total Security Suite required for M270, M370, M470, M570, M670, FireboxV and Firebox Cloud. **Not available on Firebox T115-W, T20/T20-W, T25/T25-W, or T35-R.

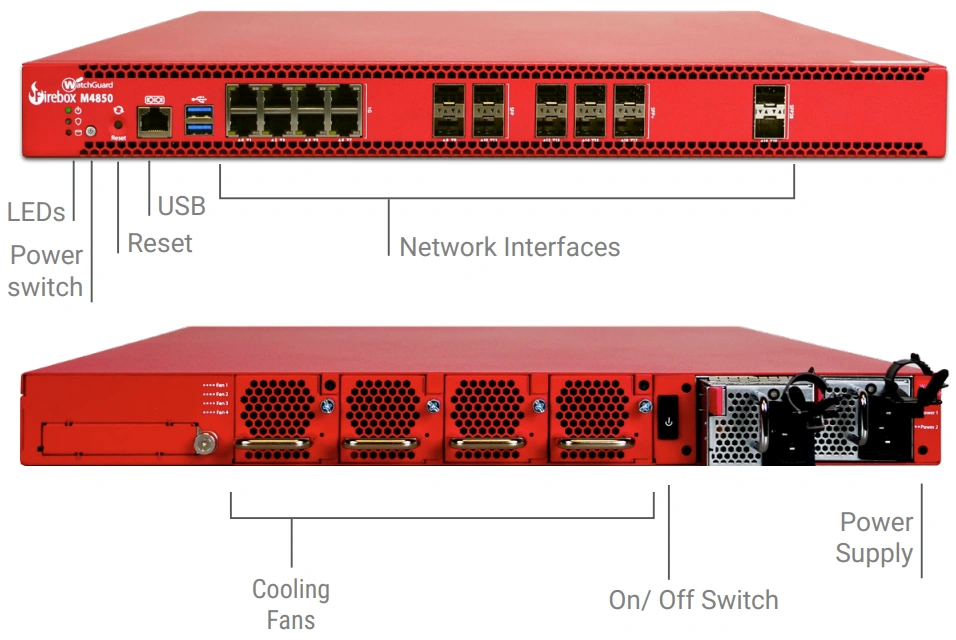

Specifications:
| Firebox M4850 | Specifications |
|---|---|
| Throughput1 | |
| Firewall (UDP 1518) | 66.50 Gbps |
| Firewall (IMIX) | 18.50 Gbps |
| UTM (Full Scan)2 | 19.10 Gbps |
| UTM (Fast Scan) | 23.50 Gbps |
| Antivirus | 27.00 Gbps |
| IPS (Full Scan) | 25.00 Gbps |
| IPS (Fast Scan) | 32.00 Gbps |
| HTTPS Content Inspection IPS (Full Scan) | 8.80 Gbps |
| VPN (UDP 1518) | 18.9 Gbps |
| VPN (IMIX) | 4.1 Gbps |
| Capacity | |
| Network Interfaces | 1 Gbps RJ45 x 8, 1 Gbps SFP x 4, 10 Gbps SFP+ x 6, 25 Gbps SFP28 x 2 |
| OCP 3.0 Expansion Bay | Optional: 2.5 Gbps RJ45 x 4 or 25 Gbps SFP28 x 4 or 100 Gbps QSFP28 x 2 |
| I/O interfaces | 1 Serial/2 USB-A 3.0 |
| Concurrent connections | 37,000,000 |
| Concurrent connections (proxy) | 2,500,000 |
| New connections per second | 260,000 |
| VLANs | Unrestricted |
| WSM licenses (incl) | 4 |
| TDR Host Sensors included | 250 |
| VPN Tunnels | |
| Branch Office VPN | 5,000 |
| Mobile VPN | 10,000 |
| Security Services | |
| Firewall | Stateful packet inspection, TLS decryption, proxy firewall |
| Application proxies | HTTP, HTTPS, FTP, DNS, TCP/UDP, POP3S, SMTPS, IMAPS, and Explicit Proxy |
| Threat protection | DoS attacks, fragmented & malformed packets, blended threats |
| Filtering options | Browser Safe Search, Google for Business |
| VPN | |
| Site to Site VPN | IKEv2, IPSec, Policy and Route Based Tunnels, TLS hub and spoke |
| Remote Access VPN | IKEv2, IPSec, L2TP, TLS |
| Visibility | |
| Logging and notifications | WatchGuard Cloud & Dimension, Syslog, SNMP v2/v3 |
| Reporting | WatchGuard Cloud includes over 100 pre-defined reports, executive summary, and visibility tools |
| Certifications | |
| Security | Pending: Common Criteria, FIPS 140-3 |
| Safety | NRTL/C, CB |
| Network | IPv6 Ready Gold (routing) |
| Hazardous substance control | WEEE, RoHS, REACH |
| Networking | |
| SD-WAN | Multi-WAN failover, dynamic path selection, jitter/loss/latency measurement |
| Dynamic Routing | RIP, OSPF, BGP |
| High Availability | Active/Passive, Active/Active |
| QoS | 802.1Q, DSCP, IP Precedence |
| Traffic Management | By policy or application |
| IP address assignment | Static, DHCP (server, client, relay), PPPoE, DynDNS |
| NAT | Static, dynamic, 1:1, IPSec traversal, policy-based |
| Link aggregation | 802.3ad dynamic, static, active/backup |
| Physical and Power Specifications | |
| Product Dimensions | 20.25" x 17.32" x 1.73" (515mm x 440mm x 44mm) |
| Shipping Dimensions | 229.25" x 23.25" x 9" (751mm x 599mm x 23 mm) |
| Product Weight | 19.84 lbs (9 kg) |
| Shipping Weight | 36.38 lbs (16.5 kg) |
| Power Consumption | 374.1 Watts |
| Power | Dual hot-swappable, redundant power with 2x C14 inlet, 100-240VAC 50-60Hz, 10A max inputs |
| Fan Operation | Redundant, hot-swappable fan modules, where one is hot-swappable at a time |
| Environment Specifications | |
| Operating Temperature | 32° F to 104° F / 0° C to 40° C |
| Storage Temperature | -14° F to 158° F / -10° C to 70° C |
| Operating Relative Humidity | 5% to 90% non-condensing |
| Storage Relative Humidity | 5% to 90% non-condensing |
| Operating Altitude | 0 to 9,843 ft at 95° F (3,000 m at 35° C) |
| Storage Altitude | 0 to 15,000 ft at 95° F (4,570 m at 35° C) |
| MTBF | TBD |
