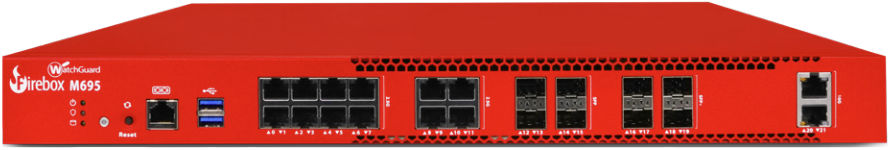

WatchGuard Firebox M695
Uncompromising speed and security with 45 Gbps firewall throughput, 2,000 VPN tunnels, and enterprise-grade threat protection
WatchGuard Products
WatchGuard Firebox M695 with Basic Security Suite
Includes: Basic Security Suites include Appliance, Standard Support (24x7), Application Control, WebBlocker, spamBlocker, Gateway Antivirus, Intrusion Prevention Service, Reputation Enabled Defense, and Network Discovery
WatchGuard Firebox M695 with 1 Year Basic Security Suite
#WGM69500701
Our Price: Request a Quote
Our Price: Request a Quote
WatchGuard Firebox M695 with 3 Year Basic Security Suite
#WGM69500703
Our Price: Request a Quote
Our Price: Request a Quote
Click here to jump to more pricing!
Please Note: All Prices are Inclusive of GST
Overview:
Maximum Performance for Mission-Critical Networks
At the top of the M Series lineup, the Firebox M695 delivers 10.2 Gbps UTM throughput, 5.2 Gbps HTTPS inspection, and supports up to 2,000 users. Designed for organizations that can’t compromise on speed or security, it ensures peak protection and performance in the most demanding environments.
“WatchGuard Network Security has been my go to solution for firewalls and WAN security for many years. I like the scalability of the devices and the licensing options. I appreciate the different licensing options for the solutions including the different add on services for increased security offerings like botnet scanning, IPS, gateway a/v, etc.”
~Mike Broseus
IT Manager, Advanced Business Communications Inc
Specifications:
| Firebox M695 Specifications | |
|---|---|
| Throughput | |
| UTM (full scan) | 10.20 Gbps |
| VPN (IMIX) | 4.00 Gbps |
| HTTPS (IPS enabled) | 5.20 Gbps |
| AntiVirus | 11.50 Gbps |
| IPS (full scan) | 10.80 Gbps |
| Firewall (UDP 1518) | 45.00 Gbps |
| VPN (UDP 1518) | 13.00 Gbps |
| Capacity | |

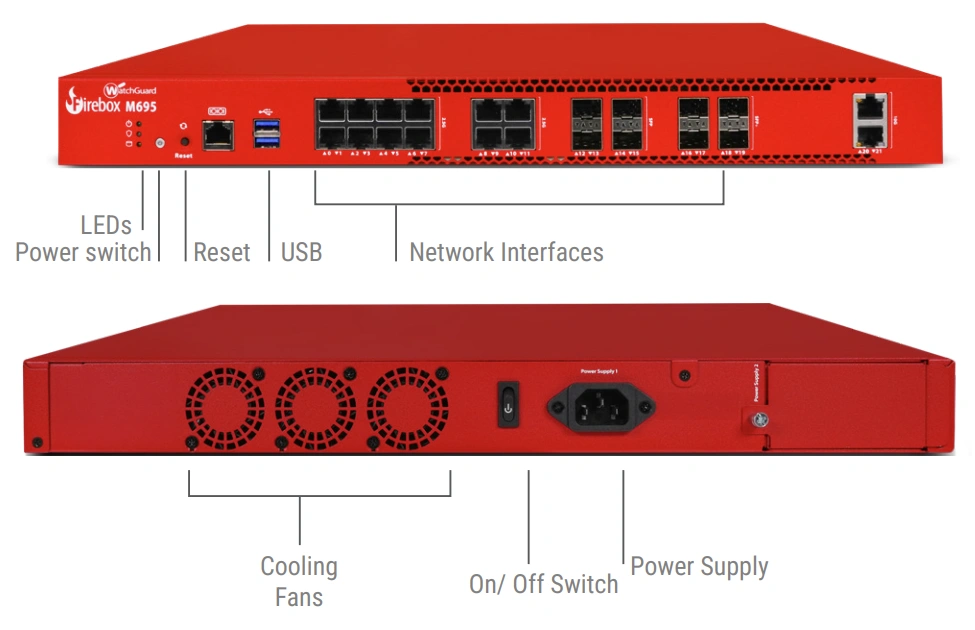

| Network Interfaces | 2.5 Gbps RJ45 x 12, 10 Gbps RJ45 x 2, 1 Gbps SFP x 4, 10 Gbps SFP+ x 4 |
| I/O Interfaces | 1 Serial / 2 USB-A 3.2 |
| Concurrent Connections | 30,000,000 |
| Concurrent Connections (proxy) | 780,000 |
| New Connections per Second | N/A |
| VLANs | Unrestricted |
| WSM Licenses (incl) | 4 |
| TDR Host Sensors Included | 250 |
| VPN Tunnels | |
| Branch Office VPN | 2000 |
| Mobile VPN | 2000 |
| Security Features | |
| Firewall | Stateful packet inspection, TLS decryption, proxy firewall |
| Application Proxies | HTTP, HTTPS, FTP, DNS, TCP/UDP, POP3S, SMTPS, IMAPS, Explicit Proxy |
| Threat Protection | DoS attacks, fragmented & malformed packets, blended threats |
| Filtering Options | Browser Safe Search, Google for Business |
| VPN | |
| Site to Site VPN | IKEv2, IPSec, Policy & Route Based Tunnels, TLS hub and spoke |
| Remote Access VPN | IKEv2, IPSec, L2TP, TLS |
| Visibility | |
| Logging & Notifications | WatchGuard Cloud & Dimension, Syslog, SNMP v2/v3 |
| Reporting | WatchGuard Cloud with 100+ pre-defined reports, executive summary, visibility tools |
| Certifications | |
| Security* | Pending: Common Criteria, FIPS 140-3 |
| Safety | NRTL/C, CB |
| Network | IPv6 Ready Gold (routing) |
| Hazardous Substance Control | WEEE, RoHS, REACH |
| Networking | |
| SD-WAN | Multi-WAN failover, dynamic path selection, jitter/loss/latency measurement |
| Dynamic Routing | RIP, OSPF, BGP |
| High Availability | Active/Passive, Active/Active |
| QoS | 802.1Q, DSCP, IP Precedence |
| Traffic Management | By policy or application |
| IP Address Assignment | Static, DHCP (server, client, relay), PPPoE, DynDNS |
| NAT | Static, dynamic, 1:1, IPSec traversal, policy-based |
| Link Aggregation | 802.3ad dynamic, static, active/backup |
| Physical and Power Specifications | |
| Product Dimensions | 17.3" x 12.2" x 1.73" (440 x 310 x 44 mm) |
| Shipping Dimensions | 21.75" x 20" x 5.25" (552.45 x 508 x 185.85 mm) |
| Product Weight | 10.8 lbs (4.90 kg) |
| Shipping Weight | 15.35 lbs (6.98 kg) |
| Power | 237 W (Max) |
| Power Consumption | 1x C14 inlet (90-264VAC), 1x CRPS slot (optional) |
| Environment Specifications | |
| Operating Temperature | 32° F to 104° F / 0° C to 40° C |
| Storage Temperature | -40° F to 158° F / -40° C to 70° C |
| Operating Relative Humidity | 5% to 90% non-condensing |
| Storage Relative Humidity | 5% to 90% non-condensing |
| Operating Altitude | 0 to 9,843 ft at 95° F (3,000 m at 35° C) |
| Storage Altitude | 0 to 15,000 ft at 95° F (4,570 m at 35° C) |
| MTBF | 315,291 hours |
2 UTM throughput is measured using HTTP traffic with AV, IPS, and Application Control enabled, and does not account for all security services available on the appliance.
Support and Services:
Strong Security at Every Layer
Uniquely architected to be the industry’s smartest, fastest, and most effective network security products, WatchGuard solutions deliver in-depth defenses against advanced malware, ransomware, botnets, trojans, viruses, drive-by downloads, data loss, phishing, and much more.
| Feature | Standard Support | Basic Security | Total Security | |
|---|---|---|---|---|
 |
Stateful Firewall | |||
 |
VPN | |||
 |
SD-WAN | |||
 |
Access Portal* | |||
 |
Intrusion Prevention Service (IPS) | |||
 |
Application Control | |||
 |
WebBlocker (URL/Content Filtering) | |||
 |
spamBlocker (Anti-Spam) | |||
 |
Gateway AntiVirus | |||
 |
Reputation Enabled Defense | |||
 |
Network Discovery | |||
 |
APT Blocker | |||
 |
DNSWatch | |||
 |
IntelligentAV** | |||
 |
ThreatSync (XDR) | |||
 |
EDR Core | |||
 |
WatchGuard Cloud Log Data Retention Report Data Retention |
90 Days 1 Day |
365 Days 30 Days |
|
 |
Support | Standard (24x7) | Standard (24x7) | Gold (24x7) |
**Not available on Firebox T115-W, T20/T20-W, T25/T25-W, or T35-R.
Documentation:
Download the WatchGuard Firebox M695 (.PDF)
Pricing Notes:
- All Prices are Inclusive of GST
- Pricing and product availability subject to change without notice.
Custom Configurations
Looking for more configuration options or custom setups? Our team can help you find the right solution based on your requirements.
Contact UsBulk Purchase Support
Need multiple devices for your business or project? Contact us to discuss bulk pricing, availability, and delivery options.
Contact UsWatchGuard Products
WatchGuard Firebox M695 with Basic Security Suite
Includes: Basic Security Suites include Appliance, Standard Support (24x7), Application Control, WebBlocker, spamBlocker, Gateway Antivirus, Intrusion Prevention Service, Reputation Enabled Defense, and Network Discovery
WatchGuard Firebox M695 with 1 Year Basic Security Suite
#WGM69500701
Our Price: Request a Quote
Our Price: Request a Quote
WatchGuard Firebox M695 with 3 Year Basic Security Suite
#WGM69500703
Our Price: Request a Quote
Our Price: Request a Quote
WatchGuard Firebox M695 with Total Security Suite
Includes: Total Security Suites include Appliance, Gold Support, Basic Security Suite, APT Blocker, Data Loss Prevention, Dimension Command, Access Portal, DNSWatch, IntelligentAV, Cloud, and Threat Detection & Response
WatchGuard Firebox M695 with 1 Year Total Security Suite
#WGM69500801
Our Price: Request a Quote
Our Price: Request a Quote
WatchGuard Firebox M695 with 3 Year Total Security Suite
#WGM69500803
Our Price: Request a Quote
Our Price: Request a Quote
WatchGuard Firebox M695 with Standard Support
Includes: Appliances with Support only (includes Support (24x7), VPN & Networking, Dimension Command, and Access Portal)
WatchGuard Firebox M695 with 1 Year Standard Support
#WGM69500601
Our Price: Request a Quote
Our Price: Request a Quote
WatchGuard Firebox M695 with 3 Year Standard Support
#WGM69500603
Our Price: Request a Quote
Our Price: Request a Quote
WatchGuard Firebox M695 High Availability with Standard Support
High Availability Appliances (Must be activated on an account with a non HA appliance of the same model)
WatchGuard Firebox M695 High Availability with 1 Year Standard Support
#WGM69501601
Our Price: Request a Quote
Our Price: Request a Quote
WatchGuard Firebox M695 High Availability with 3 Year Standard Support
#WGM69501603
Our Price: Request a Quote
Our Price: Request a Quote
WatchGuard Firebox M695 Trade Up Program - Basic Security Suite
Trade up to WatchGuard Firebox M695 with 3 Year Basic Security Suite
#WGM69502003
Our Price: Request a Quote
Our Price: Request a Quote
WatchGuard Firebox M695 Trade Up Program - Total Security Suite
Trade up to WatchGuard Firebox M695 with 1 Year Total Security Suite
#WGM69502101
Our Price: Request a Quote
Our Price: Request a Quote
Trade up to WatchGuard Firebox M695 with 3 Year Total Security Suite
#WGM69502103
Our Price: Request a Quote
Our Price: Request a Quote
WatchGuard Basic Security Software Suite Renewal/Upgrade
Basic Security Suites include Appliance, Standard Support (24x7), Application Control, WebBlocker, spamBlocker, Gateway Antivirus, Intrusion Prevention Service, Reputation Enabled Defense, and Network Discovery
WatchGuard Basic Security Suite Renewal/Upgrade 3 Year for Firebox M695
#WGM69540203
Our Price: Request a Quote
Our Price: Request a Quote
WatchGuard Total Security Software Suite Renewal/Upgrade
Total Security Software Suites include Gold Support, Basic Security Suite, APT Blocker, Data Loss Prevention, Dimension Command, Access Portal, DNSWatch, IntelligentAV, Cloud, and Threat Detection & Response
WatchGuard Total Security Suite Renewal/Upgrade 1 Year for Firebox M695
#WGM69540301
Our Price: Request a Quote
Our Price: Request a Quote
WatchGuard Total Security Suite Renewal/Upgrade 3 Year for Firebox M695
#WGM69540303
Our Price: Request a Quote
Our Price: Request a Quote
WatchGuard APT Blocker for Firebox M695
WatchGuard Network Detection and Response for Firebox M695
WatchGuard Cloud Data Retention for Firebox M695
WatchGuard Cloud 1-Month Data Retention for M695 - 1 Year
#WGM69521801
Our Price: Request a Quote
Our Price: Request a Quote
WatchGuard Cloud 1-Month Data Retention for M695 - 3 Year
#WGM69521803
Our Price: Request a Quote
Our Price: Request a Quote
WatchGuard Gold Support Renewal/Upgrade
WatchGuard Gold Support Renewal/Upgrade 1 Year for Firebox M695
#WGM69540701
Our Price: Request a Quote
Our Price: Request a Quote
WatchGuard Gold Support Renewal/Upgrade 3 Year for Firebox M695
#WGM69540703
Our Price: Request a Quote
Our Price: Request a Quote
WatchGuard Standard Support Renewal
WatchGuard Standard Support Renewal 1 Year for Firebox M695
#WGM69540101
Our Price: Request a Quote
Our Price: Request a Quote
WatchGuard Standard Support Renewal 3 Year for Firebox M695
#WGM69540103
Our Price: Request a Quote
Our Price: Request a Quote
WatchGuard Premium 4 hours Replacement
WatchGuard Firebox M695 1 Year Premium 4hr Replacement
#WGM69541301
Our Price: Request a Quote
Our Price: Request a Quote
WatchGuard Firebox M695 3 Year Premium 4hr Replacement
#WGM69541303
Our Price: Request a Quote
Our Price: Request a Quote
Accessories
Redundant Power Supply for WatchGuard Firebox M395/M495/M595/M695
#WG9037
Our Price: Request a Quote
Our Price: Request a Quote
