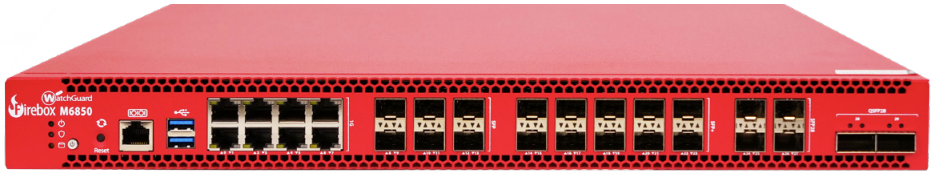

Firebox M6850
Flagship firewall with high-speed firewall performance and large-scale VPN tunnel capacity
WatchGuard Products
WatchGuard Firebox M6850 Appliance (Hardware Only - Subscription Required for Operation)
WatchGuard Standard Support (Service Subscription - Hardware Required)
Includes: Support (24x7), VPN & Networking, and Dimension Command
WatchGuard Standard Support for Firebox M6850 - 1 Year
#WGM68500601
Our Price: Request a Quote
Our Price: Request a Quote
WatchGuard Standard Support for Firebox M6850 - 3 Year
#WGM68500603
Our Price: Request a Quote
Our Price: Request a Quote
WatchGuard Standard Support for Firebox M6850 - 5 Year
#WGM68500605
Our Price: Request a Quote
Our Price: Request a Quote
Click here to jump to more pricing!
Please Note: All Prices are Inclusive of GST
Overview:
Uncompromising Security Headroom for the Most Demanding Networks
The Firebox M6850 is designed for organizations that are planning not just for today’s traffic, but for what comes next. As the top tier model in the Firebox High Rackmount family, the M6850 delivers the highest levels of firewall, VPN, UTM, and HTTPS inspection performance, combined with native ultra high speed networking. Built for data center edge, core infrastructure, and high-growth enterprises, the M6850 enables customers to standardize on a single firewall platform that can accommodate future increases in users, applications, and encrypted traffic without repeated hardware refreshes.
Uncompromising Speed
Deep, Continuous Security
Next-Gen Scaling
Enterprise-Grade Power
Features:
Strong Security at Every Layer
Uniquely architected to be the industry’s smartest, fastest, and most effective network security products, WatchGuard solutions deliver in-depth defenses against advanced malware, ransomware, botnets, trojans, viruses, drive-by downloads, data loss, phishing, and much more.
| Standard Support | Basic Security | Total Security | ||
|---|---|---|---|---|
 |
Stateful Firewall |
|||
 |
VPN |
|||
 |
SD-WAN |
|||
 |
Access Portal* |
|||
 |
Intrusion Prevention Service (IPS) |
|||
 |
Application Control |
|||
 |
WebBlocker (URL/Content Filtering) |
|||
 |
spamBlocker (Anti-Spam) |
|||
 |
Gateway AntiVirus |
|||
 |
Reputation Enabled Defense |
|||
 |
Network Discovery |
|||
 |
APT Blocker |
|||
 |
DNSWatch |
|||
 |
IntelligentAV** |
|||
 |
ThreatSync (XDR) |
|||
 |
EDR Core |
|||
 |
WatchGuard Cloud Log Data Retention Report Data Retention |
90 Days 1 Day |
365 Days 30 Days |
|
 |
Support |
Standard (24x7) |
Standard (24x7) |
Gold (24x7) |
*Not available on Firebox T115-W, T20/T20-W, T25/T25-W, or T35-R. Total Security Suite required for M270, M370, M470, M570, M670, FireboxV and Firebox Cloud. **Not available on Firebox T115-W, T20/T20-W, T25/T25-W, or T35-R.

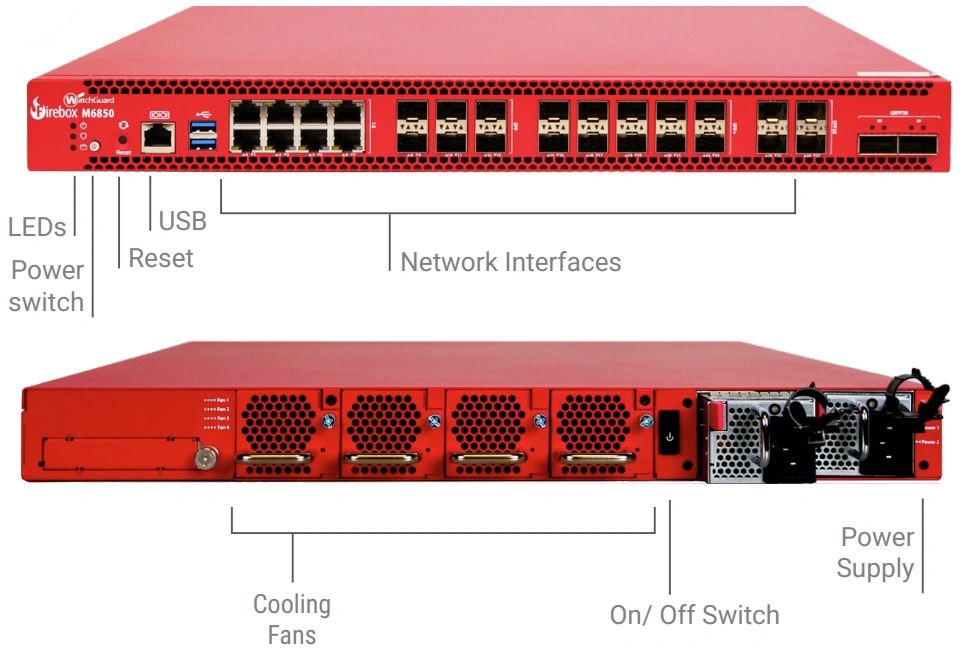

Specifications:
| Firebox M6850 Specifications | |
|---|---|
| Throughput | |
| Firewall (UDP 1518) | 104.00 Gbps |
| Firewall (IMIX) | 29.00 Gbps |
| UTM (Full Scan) | 36.50 Gbps |
| UTM (Fast Scan) | 44.00 Gbps |
| Antivirus | 43.00 Gbps |
| IPS (Full Scan) | 40.00 Gbps |
| IPS (Fast Scan) | 43.00 Gbps |
| HTTPS Content Inspection IPS (Full Scan) | 18.80 Gbps |
| VPN (UDP 1518) | 32 Gbps |
| VPN (IMIX) | 9.2 Gbps |
| Capacity | |
| Network Interfaces | 1 Gbps RJ45 x 8, 1 Gbps SFP x 6, 10 Gbps SFP+ x 10, 25 Gbps SFP28 x 4, 100 Gbps QSFP28 x 2 |
| I/O interfaces | 1 Serial/2 USB-A 3.0 |
| New connections per second | 330,000 |
| Concurrent connections | 67,000,000 |
| New connections per second (proxy) | 85,000 |
| Concurrent connections (proxy) | 5,000,000 |
| EDR Core License Included | 250 |
| WSM licenses (included) | 4 |
| EDR Core Sensors included | 250 |
| VPN Tunnels | |
| Branch Office VPN | Unrestricted |
| Mobile VPN | Unrestricted |
| Security Services | |
| Firewall | Stateful packet inspection, TLS decryption, proxy firewall |
| Application proxies | HTTP, HTTPS, FTP, DNS, TCP/UDP, POP3S, SMTPS, IMAPS, and Explicit Proxy |
| Threat protection | DoS attacks, fragmented & malformed packets, blended threats |
| Filtering options | Browser Safe Search, Google for Business |
| VPN | |
| Site to Site VPN | IKEv2, IPSec, Policy and Route Based Tunnels, TLS hub and spoke |
| Remote Access VPN | IKEv2, IPSec, L2TP, TLS |
| Visibility | |
| Logging and notifications | WatchGuard Cloud & Dimension, Syslog, SNMP v2/v3 |
| Reporting | WatchGuard Cloud includes over 100 pre-defined reports, executive summary, and visibility tools |
| Certifications | |
| Security | Pending: Common Criteria, FIPS 140-3 |
| Safety | NRTL/C, CB |
| Network | IPv6 Ready Gold (routing) |
| Hazardous substance control | WEEE, RoHS, REACH |
| Networking | |
| SD-WAN | Multi-WAN failover, dynamic path selection, jitter/loss/latency measurement |
| Dynamic Routing | RIP, OSPF, BGP |
| High Availability | Active/Passive, Active/Active |
| QoS | 802.1Q, DSCP, IP Precedence |
| Traffic Management | By policy or application |
| IP address assignment | Static, DHCP (server, client, relay), PPPoE, DynDNS |
| NAT | Static, dynamic, 1:1, IPSec traversal, policy-based |
| Link aggregation | 802.3ad dynamic, static, active/backup |
| Physical and Power Specifications | |
| Product Dimensions | 17.3" x 20.25" x 1.73" (440mm x 515mm x 44mm) |
| Shipping Dimensions | 29.25” x 23.25” x 9” (751mm x 599mm x 237mm) |
| Product Weight | 19.84 lbs (9 kg) |
| Shipping Weight | 36.38 lbs (16.5 kg) |
| Power Consumption | 374 W (Max) |
| Power | 2 x C14 inlet (90-264 VAC) 12V, 50A (600W) Hot-swappable PSU x 2 |
| Environment Specifications | |
| Operating Temperature | 32° F to 104° F / 0° C to 40° C |
| Storage Temperature | -14° F to 158° F / -10° C to 70° C |
| Operating Relative Humidity | 5% to 90% non-condensing |
| Storage Relative Humidity | 5% to 90% non-condensing |
| Operating Altitude | 0 to 9,843 ft at 95° F (3,000 m at 35° C) |
| Storage Altitude | 0 to 15,000 ft at 95° F (4,570 m at 35° C) |
| MTBF | TBD |
1 Throughput rates are determined using multiple flows through multiple ports and will vary depending on the environment and configuration. Max firewall throughput tested via direct connection using 1518-byte UDP frames based on RFC 2544 methodology. All testing performed on Fireware version 2025.1. 2 UTM throughput is measured using HTTP traffic with AV, IPS, and Application Control enabled, and does not account for all security services available on the appliance.
Documentation:
Download the Firebox M6850 (.PDF)
Pricing Notes:
- All Prices are Inclusive of GST
- Pricing and product availability subject to change without notice.
Custom Configurations
Looking for more configuration options or custom setups? Our team can help you find the right solution based on your requirements.
Contact UsBulk Purchase Support
Need multiple devices for your business or project? Contact us to discuss bulk pricing, availability, and delivery options.
Contact UsWatchGuard Products
WatchGuard Firebox M6850 Appliance (Hardware Only - Subscription Required for Operation)
WatchGuard Standard Support (Service Subscription - Hardware Required)
Includes: Support (24x7), VPN & Networking, and Dimension Command
WatchGuard Standard Support for Firebox M6850 - 1 Year
#WGM68500601
Our Price: Request a Quote
Our Price: Request a Quote
WatchGuard Standard Support for Firebox M6850 - 3 Year
#WGM68500603
Our Price: Request a Quote
Our Price: Request a Quote
WatchGuard Standard Support for Firebox M6850 - 5 Year
#WGM68500605
Our Price: Request a Quote
Our Price: Request a Quote
WatchGuard Basic Security Suite (Service Subscription - Hardware Required)
Includes: Standard Support(24x7), Application Control, WebBlocker, spamBlocker, Gateway Antivirus, Intrusion Prevention Service, Reputation Enabled Defense, and Network Discovery
WatchGuard Basic Security Suite for Firebox M6850 - 1 Year
#WGM68500701
Our Price: Request a Quote
Our Price: Request a Quote
WatchGuard Basic Security Suite for Firebox M6850 - 3 Year
#WGM68500703
Our Price: Request a Quote
Our Price: Request a Quote
WatchGuard Basic Security Suite for Firebox M6850 - 5 Year
#WGM68500705
Our Price: Request a Quote
Our Price: Request a Quote
WatchGuard Total Security Suite (Service Subscription - Hardware Required)
Includes: Gold Support, Basic Security Suite, APT Blocker, DNSWatch, Cloud, and Threat Detection & Response
WatchGuard Total Security Suite for Firebox M6850 - 1 Year
#WGM68500801
Our Price: Request a Quote
Our Price: Request a Quote
WatchGuard Total Security Suite for Firebox M6850 - 3 Year
#WGM68500803
Our Price: Request a Quote
Our Price: Request a Quote
WatchGuard Total Security Suite for Firebox M6850 - 5 Year
#WGM68500805
Our Price: Request a Quote
Our Price: Request a Quote
WatchGuard High Availability with Standard Support
High Availability Appliances (Must be activated on an account with a non HA appliance of the same model)
WatchGuard High Availability for Firebox M6850 - 1 Year
#WGM68501601
Our Price: Request a Quote
Our Price: Request a Quote
WatchGuard High Availability for Firebox M6850 - 3 Year
#WGM68501603
Our Price: Request a Quote
Our Price: Request a Quote
WatchGuard High Availability for Firebox M6850 - 5 Year
#WGM68501605
Our Price: Request a Quote
Our Price: Request a Quote
WatchGuard Trade Up to Basic Security Suite
Basic Security Suites include Appliance, Standard Support (24x7), Application Control, WebBlocker, spamBlocker, Gateway Antivirus, Intrusion Prevention Service, Reputation Enabled Defense, and Network Discovery
WatchGuard Trade Up to Basic Security Suite for Firebox M6850 - 3 Year
#WGM68502003
Our Price: Request a Quote
Our Price: Request a Quote
WatchGuard Trade Up to Basic Security Suite for Firebox M6850 - 5 Year
#WGM68502005
Our Price: Request a Quote
Our Price: Request a Quote
WatchGuard Trade Up to Total Security Suite
Total Security Software Suites include Gold Support, Basic Security Suite, APT Blocker, Data Loss Prevention, Dimension Command, Access Portal, DNSWatch, IntelligentAV, Cloud, and Threat Detection & Response
WatchGuard Trade Up to Total Security Suite for Firebox M6850 - 1 Year
#WGM68502101
Our Price: Request a Quote
Our Price: Request a Quote
WatchGuard Trade Up to Total Security Suite for Firebox M6850 - 3 Year
#WGM68502103
Our Price: Request a Quote
Our Price: Request a Quote
WatchGuard Trade Up to Total Security Suite for Firebox M6850 - 5 Year
#WGM68502105
Our Price: Request a Quote
Our Price: Request a Quote
WatchGuard Basic Security Suite Renewal/Upgrade
WatchGuard Basic Security Suite Renewal/Upgrade 1 Year for Firebox M6850
#WGM685331
Our Price: Request a Quote
Our Price: Request a Quote
WatchGuard Basic Security Suite Renewal/Upgrade 3 Year for Firebox M6850
#WGM685333
Our Price: Request a Quote
Our Price: Request a Quote
WatchGuard Total Security Suite Renewal/Upgrade
WatchGuard Total Security Suite Renewal/Upgrade 1 Year for Firebox M6850
#WGM685351
Our Price: Request a Quote
Our Price: Request a Quote
WatchGuard Total Security Suite Renewal/Upgrade 3 Year for Firebox M6850
#WGM685353
Our Price: Request a Quote
Our Price: Request a Quote
WatchGuard APT Blocker
WatchGuard Cloud 1-Month Data Retention
WatchGuard Cloud 1-Month Data Retention for Firebox M6850 - 1 Year
#WGM68521801
Our Price: Request a Quote
Our Price: Request a Quote
WatchGuard Cloud 1-Month Data Retention for Firebox M6850 - 3 Year
#WGM68521803
Our Price: Request a Quote
Our Price: Request a Quote
WatchGuard Gold Support Renewal/Upgrade
WatchGuard Gold Support Renewal/Upgrade 1 Year for Firebox M6850
#WGM685221
Our Price: Request a Quote
Our Price: Request a Quote
WatchGuard Gold Support Renewal/Upgrade 3 Year for Firebox M6850
#WGM685223
Our Price: Request a Quote
Our Price: Request a Quote
WatchGuard Standard Support Renewal
WatchGuard Standard Support Renewal 1 Year for Firebox M6850
#WGM68540101
Our Price: Request a Quote
Our Price: Request a Quote
WatchGuard Standard Support Renewal 3 Year for Firebox M6850
#WGM68540103
Our Price: Request a Quote
Our Price: Request a Quote
WatchGuard Premium 4hr Replacement
WatchGuard Premium 4hr Replacement 1 Year for Firebox M6850
#WGM685801
Our Price: Request a Quote
Our Price: Request a Quote
WatchGuard Premium 4hr Replacement 3 Year for Firebox M6850
#WGM685803
Our Price: Request a Quote
Our Price: Request a Quote
Accessories
2-port 100GbE QSFP28 OCP Module for Firebox M4850/M5850/M6850
#WG9043
Our Price: Request a Quote
Our Price: Request a Quote
4-port 25GbE SFP28 OCP Module for Firebox M-Series 5th Gen
#WG9044
Our Price: Request a Quote
Our Price: Request a Quote
4-port 2.5GbE RJ45 OCP Module for Firebox M-Series 5th Gen
#WG9045
Our Price: Request a Quote
Our Price: Request a Quote
Replacement Redundant Fan for Firebox M4850/M5850/M6850
#WG9046
Our Price: Request a Quote
Our Price: Request a Quote
