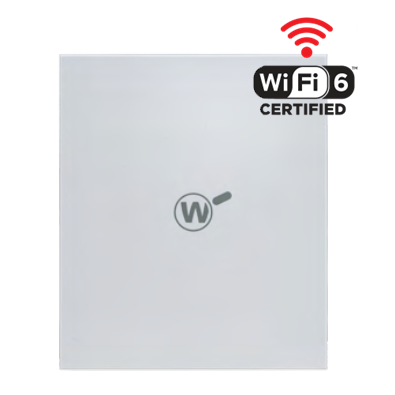

WatchGuard AP230W
2x2:2 OFDMA Wall Plate Wi-Fi 6 Access Point
Click here to jump to more pricing!
Please Note: All Prices are Inclusive of GST
Overview:
Perfect for Confined Environments and Network Expansion
WatchGuard’s AP230W is a wall-mount access point designed specifically for low-density environments like co-working spaces, conference rooms, or even your home office. Leveraging Wi-Fi 6 technology, the AP230W delivers faster speeds and improved capacity, ensuring seamless connectivity for all your devices, even in shared spaces where congestion can be an issue. Its compact, wall-mountable design s for easy installation and discreet placement, blending seamlessly into your surroundings.
Features & Benefits
- Wi-Fi 6 and WPA3 encryption
- Includes a 2x2 radio optimized for Wi-Fi 6 with three internal antennas
- A dual-band scanning radio for airspace monitoring
- Maximum Tx power delivers 23 dBm and a 3 dBi antenna gain
- Five 1 Gbps ports supporting one interface for uplink with PoE+ and four interfaces for wired extension
- Max Data rate up to 1.2 Gbps on the 5 GHz band
- Max Data rate up to 574 Mbps available on the 2.4 GHz band
- Qualcomm(R) Cypress IPQ6010 Quad-core A53 ARM process at 1.8 GHz with 1 GB RAM and 256 MB Flash
Features:
These APs come with powerful Wi-Fi 6 access point management in WatchGuard Cloud, a single management solution for WatchGuard’s full portfolio of products including Endpoint Security, AuthPoint MFA, Firebox appliances and Wi-Fi. It's optimal for designing new wireless ecosystems or replacing existing wireless networks with the latest Wi-Fi 6 technology and secure WPA3 encryption technology.
Standard Wi-Fi
A standard license for Wi-Fi in WatchGuard Cloud offers basic Cloud management features including 24-hour reporting, comprehensive 24/7 support, diagnostics, inventory management and beyond.
Unified Security Platform™ (USP) Wi-Fi
WatchGuard USP licenses for Wi-Fi in WatchGuard Cloud offer everything included in standard licenses plus 30 days of reporting, VPN configuration, advanced PSA integration and much more.
From indoor remote workspaces or a small office to rugged, expansive outdoor environments - WatchGuard has a range of Wi-Fi 6 access points to fit every wireless need. WatchGuard’s Wi-Fi management license options enable capabilities that support the business needs being faced today and offer the flexibility to evolve alongside the wireless needs of tomorrow.

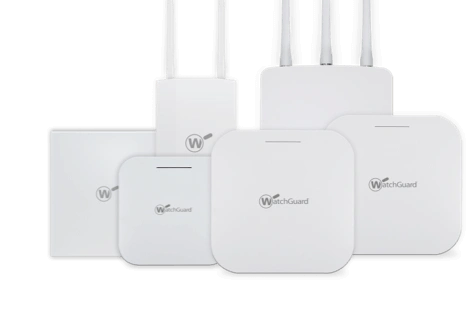

Unleash the Power of Wi-Fi 6
Our Wi-Fi 6 access points significantly boost your network's performance and efficiency. They deliver faster speeds, handle more devices simultaneously thanks to improved traffic management, and extend battery life for connected devices with smarter power-saving features. This translates to a smoother overall Wi-Fi experience for users and reduced strain on your network.
Make Wireless Management Easy
WatchGuard Cloud lets you centrally control multiple WatchGuard access points, simplifying deployment, configuration, and security. You can monitor network performance, enforce security policies to block risky devices, and generate reports – all from a user-friendly online platform, saving you time and resources compared to on-site management.
Stop Hidden Wi-Fi Threats
With a dedicated security radio, the AP230W can use airspace monitoring to scan your wired network and wireless environment for suspicious access points. It can identify rogue or imposter access points (like "evil twins") that try to steal data or disrupt your Wi-Fi. This keeps your wireless network secure by giving you visibility into unauthorized devices and helping you block them.
Eliminate Risky Devices on Your Network
Enforce security policies on your Wi-Fi network by working with WatchGuard Endpoint Security to ensures that only authorized devices with approved security software (like WatchGuard EDR Core or EPDR) can connect. This two-factor approach verifies device health before granting access, stopping potential threats at the door and keeping your business network safe.
Kickstart Your Guest Network Experience
Create secure guest Wi-Fi networks with a captive portal and a login page that restricts guest access until they accept terms or provide information. You can choose a WatchGuard-hosted portal with basic customization or integrate with third-party services for a more branded guest experience, all managed through WatchGuard Cloud for easy setup and control.
| MANAGEMENT LICENSE OPTIONS | ||
|---|---|---|
| Feature Description | Standard Wi-Fi | Unified Security Platform Wi-Fi |
| Native WatchGuard Cloud Management Features | ||
| 24/7 Support and Hardware Warranty | ||
| Inventory Management | ||
| SSH/CLI Access | ||
| Configuration of Radio Settings | ||
| Configuration of SSID | ||
| Configuration of Device Settings | ||
| Firmware Updated | ||
| 24-Hour Reporting/Visibility | ||
| Live Status Visibility | ||
| WatchGuard Cloud API Integration for PSA | ||
| AP Site Templating | ||
| Captive Portal | ||
| Network Access Enforcement | - | |
| Syslog Server Output | - | |
| IKEv2 VPN Features (RAP) | - | |
| 30-Day Reporting/Visibility | - | |
| Future WatchGuard Portfolio Integrations | - | |
| Future Security and Wi-Fi Features * | - | |
Benefits:
Specifications:

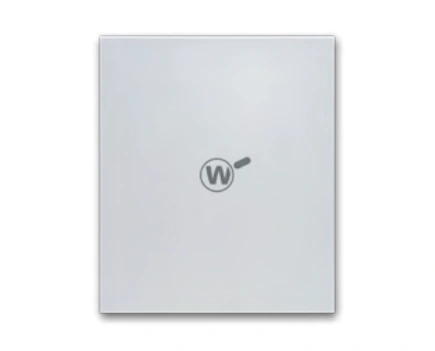

Front

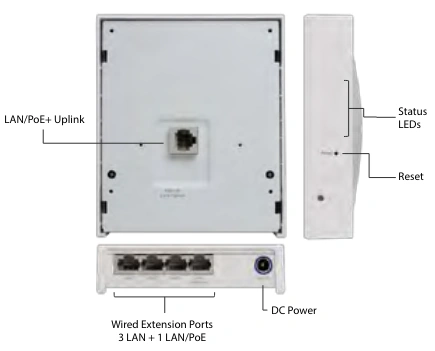

Back
| AP230W Specifications | |
|---|---|
| Physical Specifications | |
| Physical Dimensions | 110 mm x 130 mm x 34.2 mm (4.33 in x 5.12 in x 1.34 in) |
| Weight | 384 g (0.847 lbs) |
| Operating Temperature | 0˚C to 40˚C (32˚F to 104˚F) |
| Storage Temperature | -20˚C to 70˚C (-4˚F to 158˚F) |
| Humidity | 5% to 95% non-condensing |
| Power Consumption |
20.19 W (max) w/ 802.3af Class 2 PSE 13.19 W (max) / 10.5 W (avg) w/o PSE |
| Processor / RAM |
Qualcomm IPQ6010 Quad-Core CPU ARM Cortex A53 1.8GHz Flash: SPI 8MB, NAND: 256MB RAM: DDR4 1GB |
| Antenna |
Internal PIFA 2.4 GHz: 2x (3 dBi peak gain) 5 GHz: 2x (3 dBi peak gain) Internal Monopole Dual-band scanning radio (3 dBi peak gain) |
| Ethernet Ports |
One 1 Gigabit Ethernet port with RJ45 connector for uplink and PoE+ in. Four 1 Gigabit Ethernet ports with RJ45 connector for wired extension. LAN4 can provide 802.3af PSE when powered by 802.3at or DC adapter. |
| Port | Description | Connector Type | Speed / Protocol |
|---|---|---|---|
| Power | 54V DC / 802.3af (PoE+) with PSE output support | 3.5 mm overall diameter / 1.35 mm center pin/hole | N/A |
| Reset | Reset to factory default settings | Pin hole push button |
Hold down for more than 10 seconds to reset the AP; Hold down for less than 5 seconds to reboot |
| Extension | 4 × 1 Gbps ports for wired extension | RJ-45 | 1 Gbps Ethernet; One marked port supports 802.3af Class 4 PoE+ |
| LAN / PoE+ |
1 Gbps Ethernet port used to connect to the wired LAN and communicate with WatchGuard Cloud. Can also power the device using the 802.3at (PoE+) standard. |
RJ-45 | 1 Gbps Ethernet; 802.3af Class 4 PoE+ |
| Operational Specifications | |
|---|---|
| Input Power | 54V DC / 1.2 A (3.5 mm overall diameter / 1.35 mm center pin/hole) / 802.3at (PoE+) |
| Number of Radios |
3 Wi-Fi Radios: One 2.4 GHz radio and one 5 GHz radio for simultaneous dual-band client access. One dual-band radio for scanning and airspace monitoring. |
| MIMO | 2x2 for 2.4 / 5 GHz radios |
| Number of Spatial Streams | 2 for 2.4 / 5 GHz radios |
| RF Transmit Power | 18 dBm per radio chain (max); Actual Tx power depends on Country Regulatory Domain |
| Simultaneous MU-MIMO Clients | Two 1x1 clients per radio |
| Users in a MU-MIMO Group (with 2x2 client) | 1 |
| Bandwidth Agility | Yes |
| Dynamic Frequency Selection | Supported in compliance with latest FCC, CE, IC, CB, TELEC, and KCC certification amendments |
| Wi-Fi Specifications – Frequency, Modulation, and Data Rates | |||
|---|---|---|---|
| IEEE 802.11b/g/n/ax | |||
| Frequency Band | Scanning (All Regions) | Transmission (USA & Canada – FCC/IC) | Transmission (Europe – ETSI) |
| 2.4 GHz | 2400 ~ 2483.5 MHz | 2400 ~ 2473.5 MHz | 2400 ~ 2483.5 MHz |
| Modulation Type | DSSS, OFDM, OFDMA | ||
| Peak Data Rates | Up to 574 Mbps (MCS 0–15) | ||
| Antenna | Integrated modular high-efficiency PIFA antenna ×2, monopole antenna ×1 | ||
| Maximum Transmit Power | Up to 23 dBm with 3.0 dBi antenna gain | ||
| IEEE 802.11a/n/ac | |||
| Frequency Band | Scanning (All Regions) | Transmission (USA & Canada – FCC/IC) | Transmission (Europe – ETSI) |
| 4.92 ~ 5.08 GHz | Yes | - | - |
| 5.15 ~ 5.25 GHz | Yes | 5.15 ~ 5.25 GHz | 5.15 ~ 5.25 GHz |
| 5.25 ~ 5.35 GHz | Yes | 5.25 ~ 5.35 GHz | 5.25 ~ 5.35 GHz |
| 5.47 ~ 5.725 GHz | Yes | - | 5.47 ~ 5.725 GHz |
| 5.725 ~ 5.825 GHz | Yes | 5.725 ~ 5.825 GHz | - |
| Dynamic Frequency Selection | DFS and DFS2 | ||
| Modulation Type | OFDM, OFDMA | ||
| Peak Data Rates | Up to 1201 Mbps (MCS 0–15) | ||
| Antenna | Integrated modular high-efficiency PIFA antenna ×2, monopole antenna ×1 | ||
| Maximum Transmit Power | Up to 21 dBm with 3.0 dBi antenna gain | ||
Documentation:
Download the WatchGuard AP230W (.PDF)
